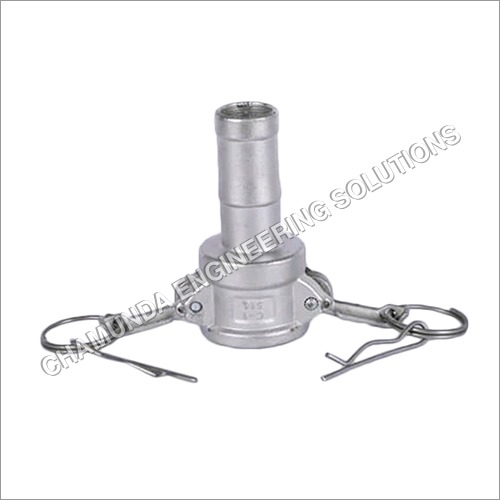

Petro Equipment Aluminum Camlock Coupling

Petro Equipment Aluminum Camlock Coupling

Name: Petro Equipment Aluminum Camlock Coupling
Brand: CHAMUNDA ENGINEERING SOLUTIONS
Price: 1650 INR
Availability: InStock

1650 INR/Piece

Get a Price/Quote

Product Details:

Max. Speed Not applicable (manual coupling operation)
Connection Quick connect
Bore Standard bore for 3 inch size
Torque Hand tightened, not specified
Head Code Round
Sealing Gasket/O-ring sealing
Thread Not threaded, Camlock system
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Petro Equipment Aluminum Camlock Coupling Price And Quantity

Price 1650 INR/Piece
Minimum Order Quantity 50 Number

End Connection Coupler x Adapter
Weight Approx. 0.9 kg (for 3 inch size)
Pressure Rating Up to 250 PSI
Compatibility Fits standard camlock sizes, Type B, C, D, E, F, DC, DP
Leakage Prevention EPDM or Buna-N Gasket Sealing
Locking Mechanism Lever-activated arms
Corrosion Resistance High due to aluminum alloy and anodized surface
Temperature Range -20°C to 80°C

Petro Equipment Aluminum Camlock Coupling Product Specifications

Size 3 inch
Sealing Gasket/O-ring sealing
Usage Structure Pipe
Standard DIN 2828 / A-A-59326 (formerly Mil-C-27487)
Shape Camlock Coupling (Standard shape)
Color Silver
Thread Not threaded, Camlock system
Product Type Petro Equipment Aluminum Camlock Coupling
Connection Quick connect
Material Aluminum Alloy
Torque Hand tightened, not specified
Bore Standard bore for 3 inch size
Inner Diameter Approx. 76 mm (3 inch)
Head Code Round
Max. Speed Not applicable (manual coupling operation)
Technique Precision die casting
Outer Diameter Approx. 90 mm
Surface Treatment Anodized/Sandblasted
Application Petrochemical industry, Structure Pipe coupling
Structure Male-Female locking arms with groove

End Connection Coupler x Adapter
Weight Approx. 0.9 kg (for 3 inch size)
Pressure Rating Up to 250 PSI
Compatibility Fits standard camlock sizes, Type B, C, D, E, F, DC, DP
Leakage Prevention EPDM or Buna-N Gasket Sealing
Locking Mechanism Lever-activated arms
Corrosion Resistance High due to aluminum alloy and anodized surface
Temperature Range -20°C to 80°C

Petro Equipment Aluminum Camlock Coupling Trade Information

Payment Terms Cash in Advance (CID)
Delivery Time Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy

Product Description

Camlock Couplings: A Quick and Secure Connection

Camlock couplings, also known as cam and groove couplings, are a type of quick-connect fitting used to join hoses and pipes in various fluid transfer systems. They are characterized by their ease of use, versatility, and reliability, making them a popular choice in many industries.

How They Work:

Camlock couplings consist of two main components:

Male Coupler: This component has a grooved tail that fits into the female coupler.
Female Coupler: This component has a cam mechanism with levers or toggles that lock the coupling in place.

To connect the couplings, simply align the male and female components and push them together. The cam mechanism will engage, creating a secure seal. To disconnect, simply lift the levers or toggles and pull the couplings apart.

Key Features and Benefits:

Quick and Easy Connection: Camlock couplings can be connected and disconnected quickly and easily, without the need for tools.
Versatile Applications: They can be used for a wide range of fluids, including water, oil, chemicals, and gases.
Reliable Seal: The cam mechanism ensures a secure and leak-proof connection.
Durable Construction: Camlock couplings are typically made from durable materials such as aluminum, stainless steel, or brass, ensuring long-lasting performance.
Wide Range of Sizes and Configurations: They are available in various sizes and configurations to suit different applications.

Common Applications:

Industrial Manufacturing: For transferring fluids and chemicals in production processes.
Agriculture: For irrigation, fertilizer application, and other agricultural tasks.
Construction: For pumping water and other materials on construction sites.
Firefighting: For connecting hoses to fire hydrants and other equipment.
Oil and Gas Industry: For transferring petroleum products and other fluids.

Precision-Engineered for Petrochemical Applications

Optimized for compatibility with DIN 2828 and A-A-59326 standards, this camlock coupling is designed specifically for the demands of the petrochemical industry. Its quick-connect mechanism streamlines operational workflows, while high-quality sealing components ensure leak-free performance, making it a trusted choice for structure pipe connectivity.

Corrosion-Resistant Reliability

Manufactured from anodized aluminum alloy, the Petro Equipment Camlock Coupling offers outstanding resistance to corrosion-even in harsh environments. The specialized surface treatment extends lifespan and minimizes maintenance requirements, making it suitable for repeated use in challenging industrial settings.

Effortless Connection and Safety

Featuring lever-activated locking arms, this camlock coupling allows for secure, rapid connections without the need for threaded ends. The inclusion of EPDM or Buna-N gaskets further enhances safety by preventing leaks, while the precision die-cast structure ensures consistent, reliable interfacing every time.

FAQ's of Petro Equipment Aluminum Camlock Coupling:

Q: How do you install the Petro Equipment Aluminum Camlock Coupling?

A: Simply align the male and female ends, insert the adapter into the coupler, and engage the lever-activated arms to lock the coupling securely. No special tools are required; hand tightening is sufficient.

Q: What benefits does the anodized aluminum construction offer?

A: The anodized aluminum alloy construction provides high corrosion resistance, light weight, and durability, making the coupling ideal for repeated use in harsh petrochemical environments.

Q: Where can this camlock coupling be used?

A: It is best suited for the petrochemical industry, particularly for structure pipe systems requiring efficient and reliable connections in industrial, export, or supply chain settings.

Q: When should the EPDM or Buna-N gasket be checked or replaced?

A: Inspect the gasket before each use for wear, cracking, or deformation. Replace as needed to ensure optimum sealing and leakage prevention.

Q: What is the process to ensure a leak-free connection with this coupling?

A: Ensure the gasket (EPDM or Buna-N) is properly seated, insert the adapter fully, then engage and secure the locking arms. This process provides a tight seal and prevents leakage.

Q: How does the quick connect mechanism enhance operational efficiency?

A: The lever-activated arms allow for swift attachment and detachment, significantly reducing downtime and boosting workflow efficiency compared to threaded couplings.
