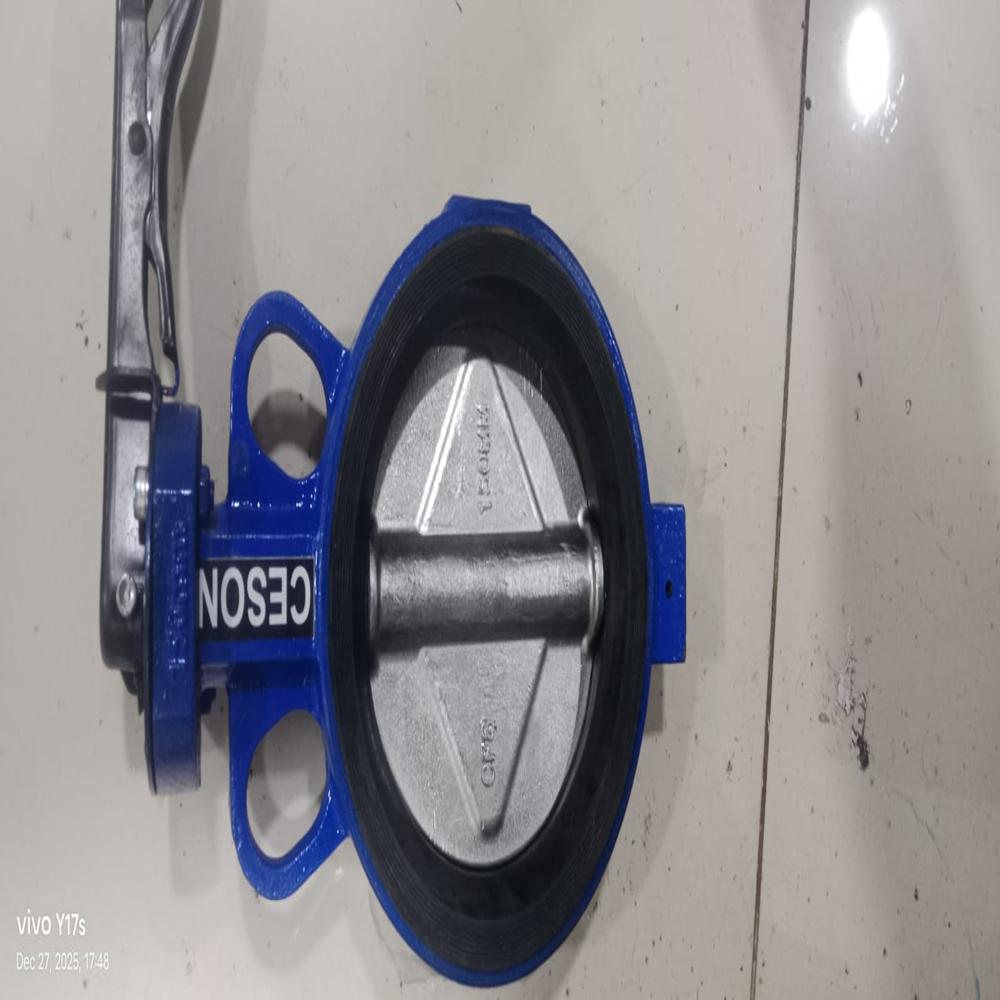

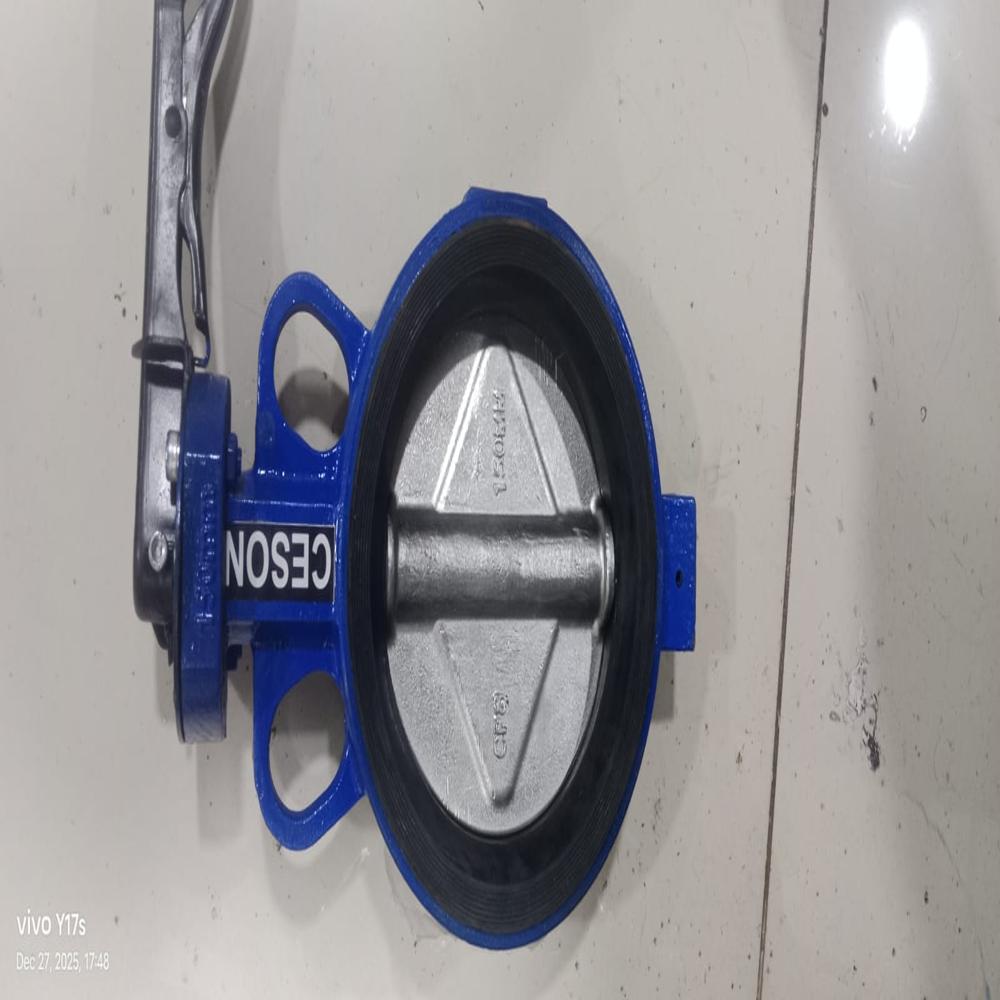

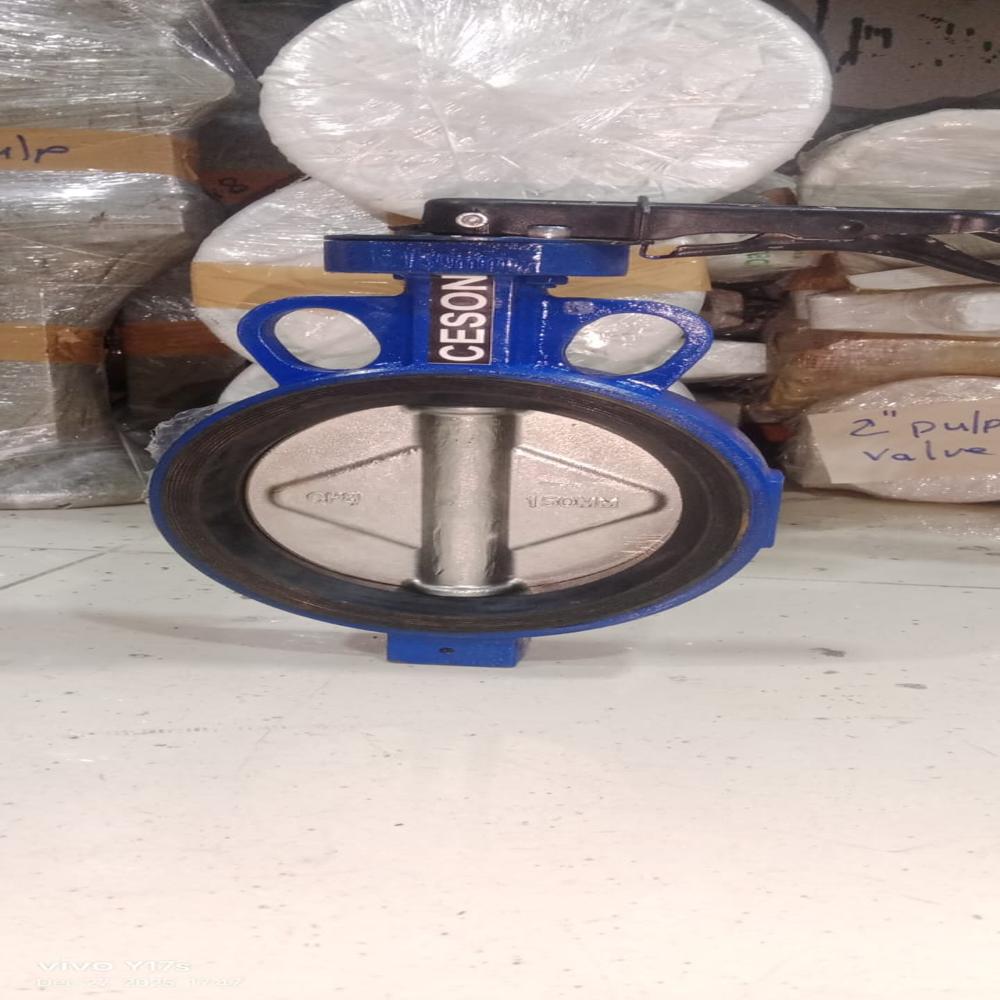

Aluminum Butterfly Valve Lug Type (150 mm)

Send Inquiry

Request To Call Back

Aluminum Butterfly Valve Lug Type (150 mm)

Name: Aluminum Butterfly Valve Lug Type (150 mm)
Brand: CHAMUNDA ENGINEERING SOLUTIONS
Price: 900.0 INR
Availability: InStock

Price 900.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Aluminum Butterfly Valve Lug Type (150 mm) Specification

Structure
Butterfly

Pressure
PN16

Caliber
6 inch

Channels
Single Channel

Connection
Lug Type

Usage
AIR GAS WATER

Material
Aluminum

Power
Manual

Media
Water

Temperature of Media
-10C to 120C

Product Type
IC

Port Size
6

Flange
Compatible with ANSI Flange

Color
BLUE

Finish
Powder Coated

Application
Industrial, Chemical, Water Treatment, HVAC, Food Processing

Design Standard
API 609

Seat Material
EPDM/NBR

Body Coating
Epoxy Powder Coated

End Connection
Drilled to suit ANSI 150

Flow Characteristics
Bi-Directional

Test Pressure
Hydrostatic Test at 24 bar

Sealing Type
Soft Seated

Operation
Lever Operated

Face-to-Face Standard
EN 558 Series 20

Disc Material
Aluminum Alloy

Mounting
Wafer and Lug Mounting

Shaft Material
Stainless Steel

Aluminum Butterfly Valve Lug Type (150 mm) Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100 Pieces Per Week

Delivery Time
1 Week

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
BOX

Main Domestic Market
All India

About Aluminum Butterfly Valve Lug Type (150 mm)

Aluminum body butter fly valve light weight 30% 40% lighter than ci /di butterfly valve no rust water comes from valve dewcondensation proof no water droup from operation. No part in contact with fluid except disc & liner, 100% leak tight design.

Reliable Flow Control for Industrial Applications

The Aluminum Butterfly Valve Lug Type combines durability and performance, making it ideal for critical fluid management across multiple sectors. Its aluminum alloy construction and stainless steel shaft ensure stability and resistance against corrosion, while the powder-coated finish extends service life. Designed as per API 609 standards, it guarantees dependable operation in water, air, and gas systems up to 24 bar.

Flexible Mounting and Bi-Directional Flow

With both wafer and lug mounting options, this valve easily integrates into existing systems. Its bi-directional flow capability means it can manage flow in either direction, providing greater flexibility during installation and operation. Compatible with ANSI 150 drilled flanges, it facilitates quick setup and maintenance, catering to industrial and process applications.

FAQ's of Aluminum Butterfly Valve Lug Type (150 mm):

Q: How is the Aluminum Butterfly Valve Lug Type installed in a pipeline?

A: Installation is straightforward due to wafer and lug mounting compatibility. The valve can be attached between ANSI 150 drilled flanges, and secured using standard bolts. Proper alignment ensures optimal bi-directional flow with minimal leakage.

Q: What are the main benefits of using an aluminum alloy disc and EPDM/NBR seat?

A: The aluminum alloy disc offers excellent corrosion resistance, while the EPDM/NBR soft seat ensures tight sealing and chemical compatibility, making the valve suitable for water, air, and gas applications, especially where hygiene and durability are priorities.

Q: When should the butterfly valve be tested and maintained?

A: The valve should undergo a hydrostatic test at 24 bar, as per standard procedures, before commissioning. Regular visual inspections and seat checks every six months help maintain sealing integrity and prolong the service life.

Q: Where is this butterfly valve commonly used?

A: Thanks to its robust design, the valve is frequently used in industrial processes, water treatment plants, HVAC systems, chemical processing, and food processing industries across India.

Q: What advantages does lever operation provide in this valve?

A: Lever operated design allows for quick, manual control of flow rates. It enables easy and precise operation without specialized tools, making it ideal for situations requiring frequent adjustment or shutoff.

Q: How does the valve ensure reliable sealing and pressure containment?

A: The combination of a soft-seated EPDM/NBR lining and stainless steel shaft provides superior sealing, protecting against leaks even at pressures up to PN16, and maintaining excellent performance across temperatures from -10C to 120C.
