Ss304 Stainless Steel Camlock Coupling

Product Description

Ss304 Stainless Steel Camlock Coupling

, also known as cam and groove couplings, are a type of quick-connect coupling used to connect and disconnect hoses and pipes. They are widely used in various industries, including agriculture, petroleum, chemicals, and manufacturing. The primary purpose of camlock couplings is to provide a secure and leak-proof connection between two fluid-carrying components.




Here are the key components and features of Ss304 Stainless Steel Camlock Coupling:




Coupler and Adapter:

Ss304 Stainless Steel Camlock Couplingconsist of two main partsthe coupler (female end) and the adapter (male end). The coupler has a groove that accepts the adapter's cam arms, allowing the two parts to lock together securely. They come in various sizes and types, including Type A, B, C, D, E, F, and DP (Dust Plug).




Cam Arms: Camlock couplings have cam arms or handles attached to the adapter. These arms are used to engage and disengage the coupler, providing a quick and easy connection or disconnection without the need for additional tools.




Gaskets and Seals: To ensure a tight and leak-proof connection, camlock couplings usually have gaskets or seals made from materials such as rubber, silicone, or PTFE (Polytetrafluoroethylene). These gaskets prevent fluid leakage and provide a seal between the coupler and adapter.




Materials:

Ss304 Stainless Steel Camlock Coupling

 are typically made of materials like aluminum, brass, stainless steel, or polypropylene. The choice of material depends on the specific application requirements, including factors such as chemical compatibility, temperature, and pressure.




Sizes and Configurations: Camlock couplings are available in various sizes, ranging from inch to 6 inches or more, with the most common sizes being 1 inch to 4 inches. They come in different configurations, such as male to female, male to male, female to female, and hose shank connections, allowing for versatility and compatibility with different systems.




Safety Features: Some camlock couplings feature additional safety mechanisms, such as locking arms or levers that prevent accidental disconnection. These safety features are especially useful in applications where the couplings may be subjected to vibration or movement.




Ss304 Stainless Steel Camlock Coupling

 are valued for their simplicity, reliability, and ease of use. They allow for quick and efficient connections and disconnections, minimizing downtime during fluid transfer operations. However, it's essential to choose the correct type, size, and material of camlock coupling based on the specific application requirements and the properties of the fluids being transferred.

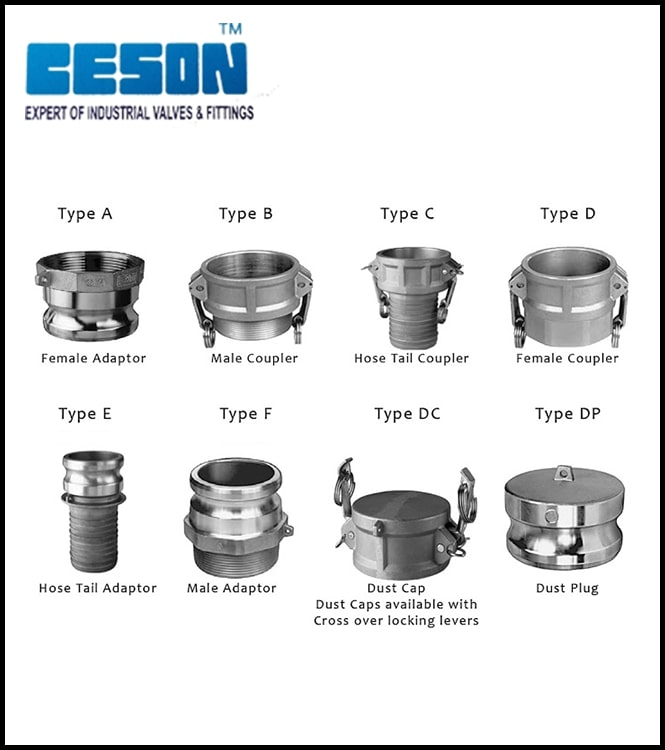

• Female Adopter A
• Male End Coupling B
• Hose End Coupling C
• Female End Coupling D

• Hose End Adopter E
• Male End Adopter F
• Dust Cap DC
• Dust Plug DP

• Flanged Adopter FA
• Flanged Coupling FC
• Double Adopter DA

Superior Corrosion Resistance and Durability

Manufactured from SS304 grade stainless steel, this camlock coupling offers excellent corrosion resistance, making it ideal for use in harsh environments. The polished, anti-rust surface treatment preserves the coupling's appearance and structural integrity over time, reducing maintenance needs and ensuring consistent performance.


Quick and Secure Locking System

Featuring sturdy stainless steel cam arms, the coupling uses a quick-lock mechanism to allow rapid and robust connection or disconnection. No tools are required, and the design includes an NBR or PTFE gasket for optimal sealing, promoting effective and worry-free fluid transfer in diverse settings.


Versatile Application and Compatibility

Engineered to be fully interchangeable with other standard camlock fittings according to ASTM A351/A351M and ISO 14420-7, this coupling meets the varied demands of hydraulic pipe, transfer pipe, and industrial fluid systems. Its full-bore, 2-piece straight body ensures unrestricted flow for a wide range of media.
